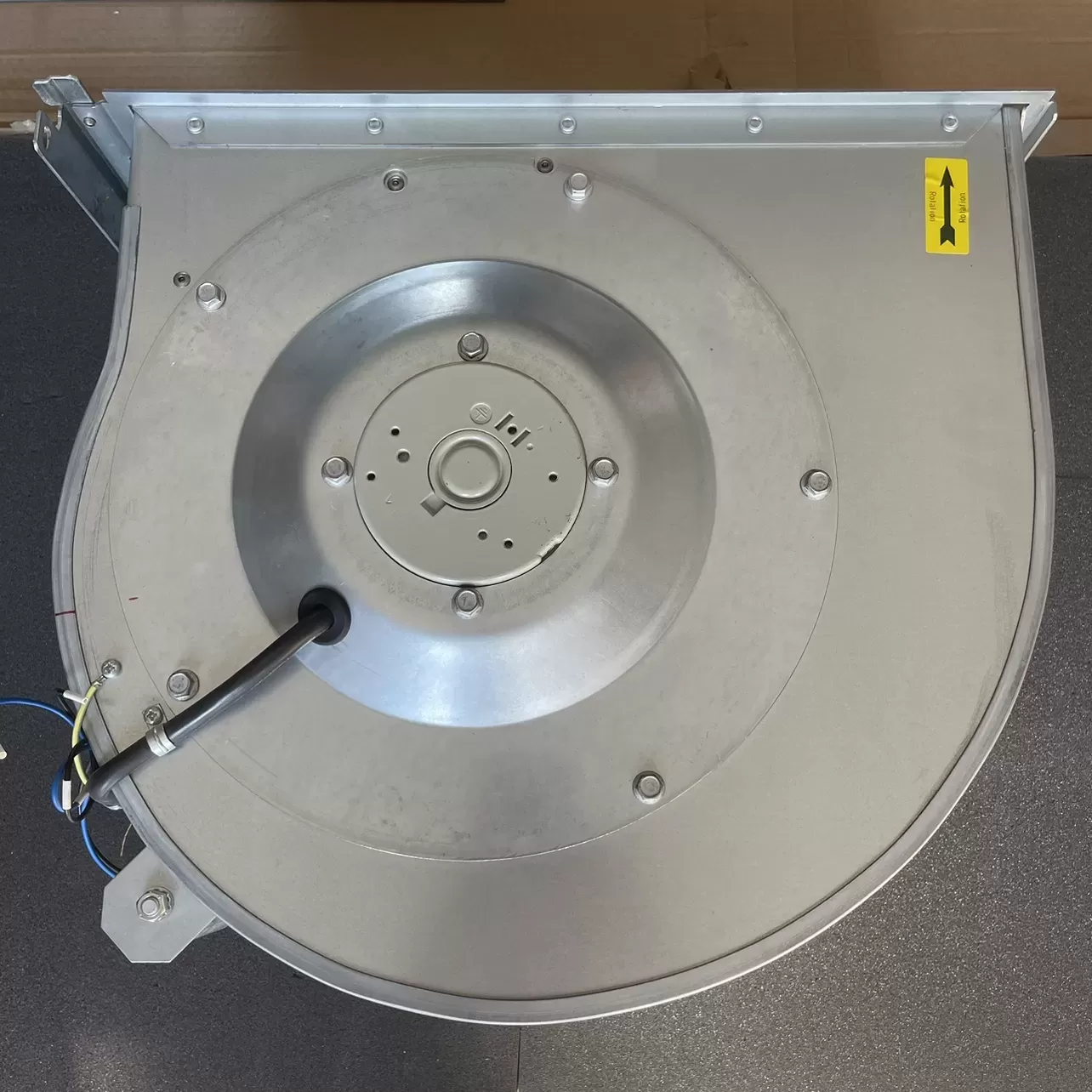

RG28P-4EK.4I.1R ZIEHL-ABEGG inverter fan 6SL3362-0AG00-0AA1

Description

Model:RG28P-4EK.4I.1R ZIEHL-ABEGG
Bearing type: Ball bearing DIN625 Size 6002-2Z C3
Applicable Standards: DIN ISO IEC
Application: Moisture and hot climate protection
Supply voltage:
1~ 230 V ±10% 50 Hz
1~ 230 V ±10% 60 Hz
Motor power: 0.69 kW (50Hz)
Minmal pressure drop:
PsF min. 250Pa (50Hz)
PsF min. 450Pa (60Hz)
Motor protection: IP10
Motor insulation class: 155 (previous: insulation class F)
Impregnation: Standard Impregnation
Number of poles: 4
Speed:
1360 rpm (50Hz)
1440 rpm (60Hz)
Motor current:
3.0 A (50 Hz)
4.5 A (60 Hz)
Motor-Recognized Component: E111399 ZA-155
UL file no.: MK106-4EK.14.U
